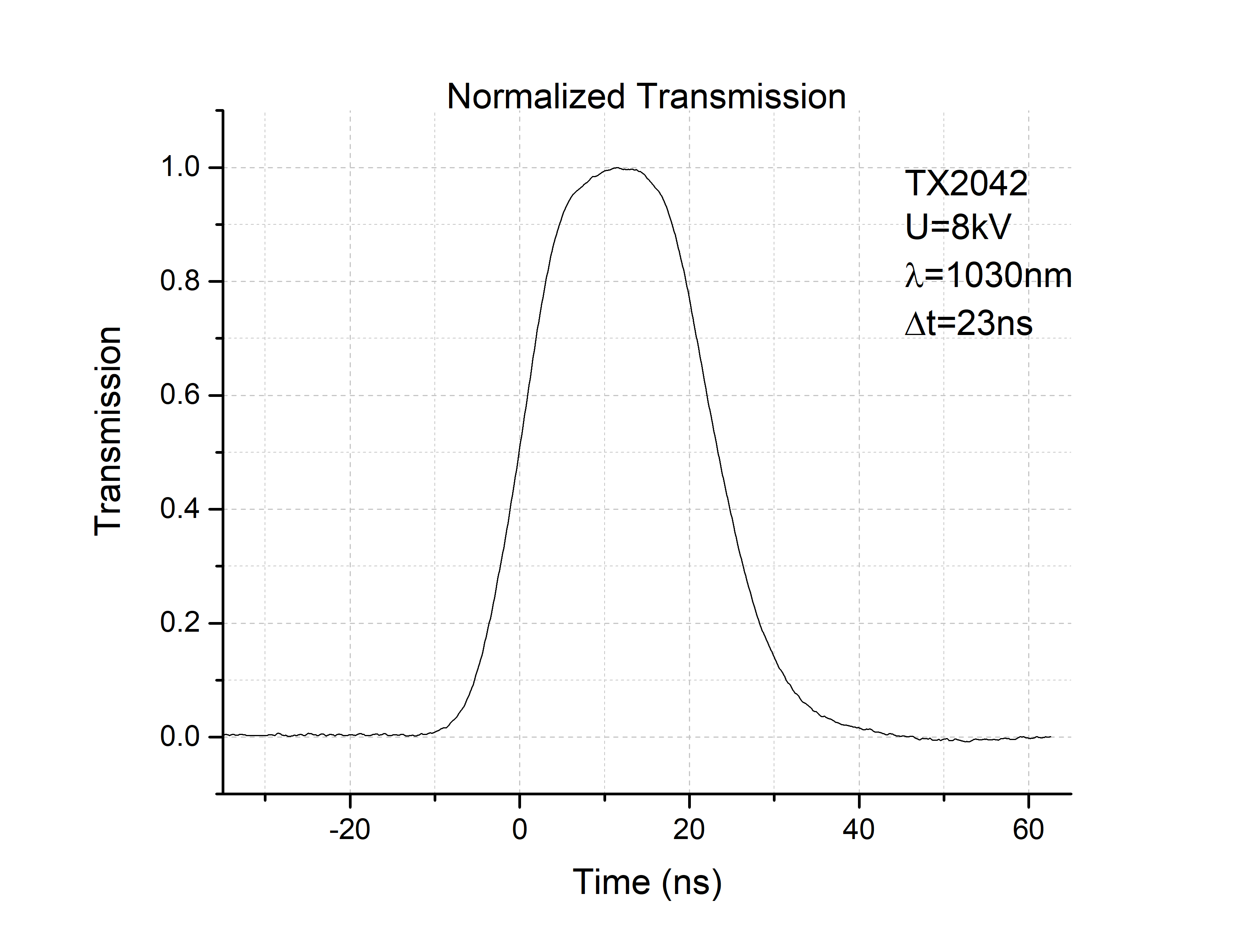

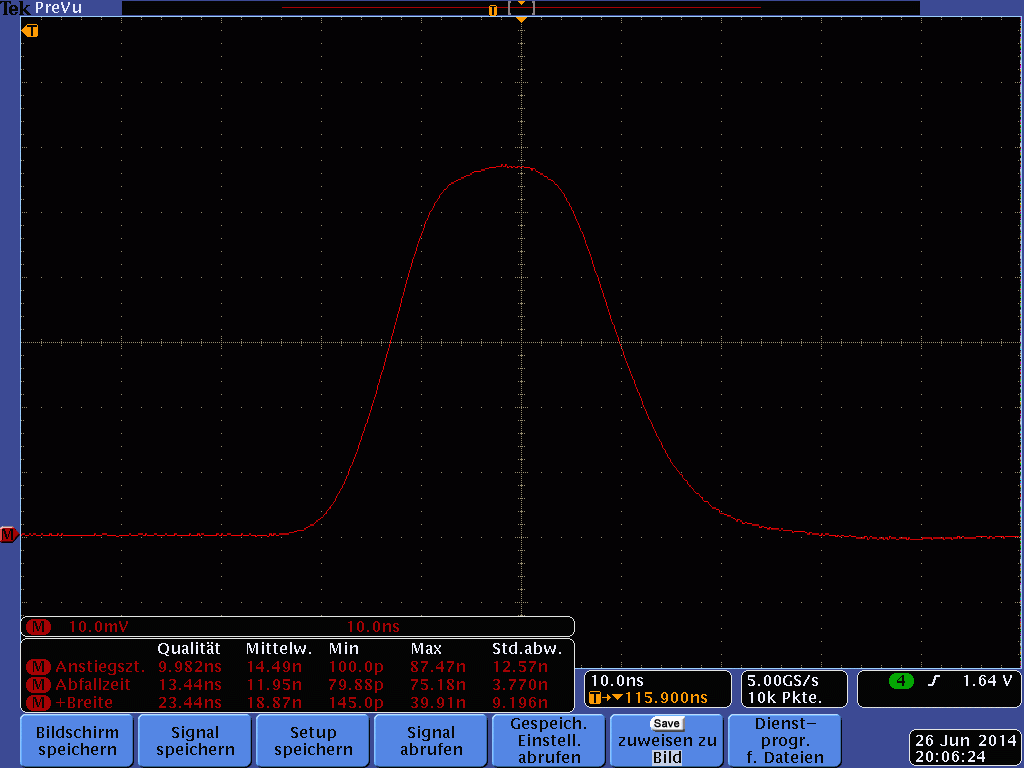

This oscilloscope trace below shows the measurement of the optical transmission of a TX2042 Pockels cell in a single-pass setup
measured with a photodiode of risetime 1nsec.
Parameters: 1030nm, 8kV, single trigger.

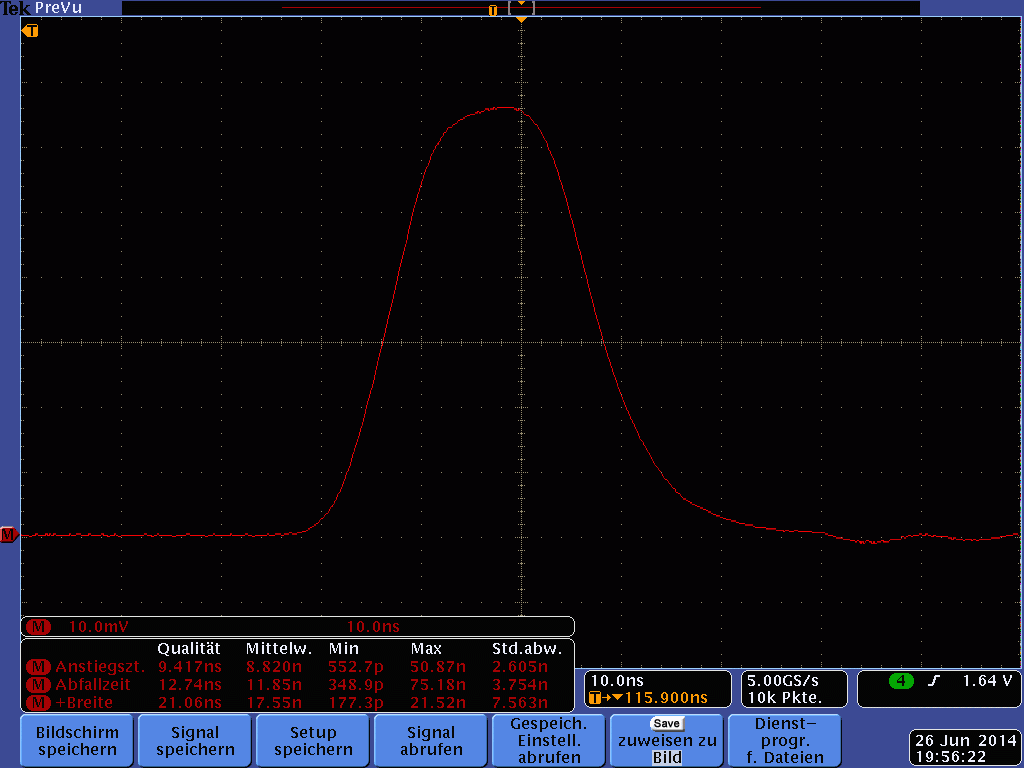

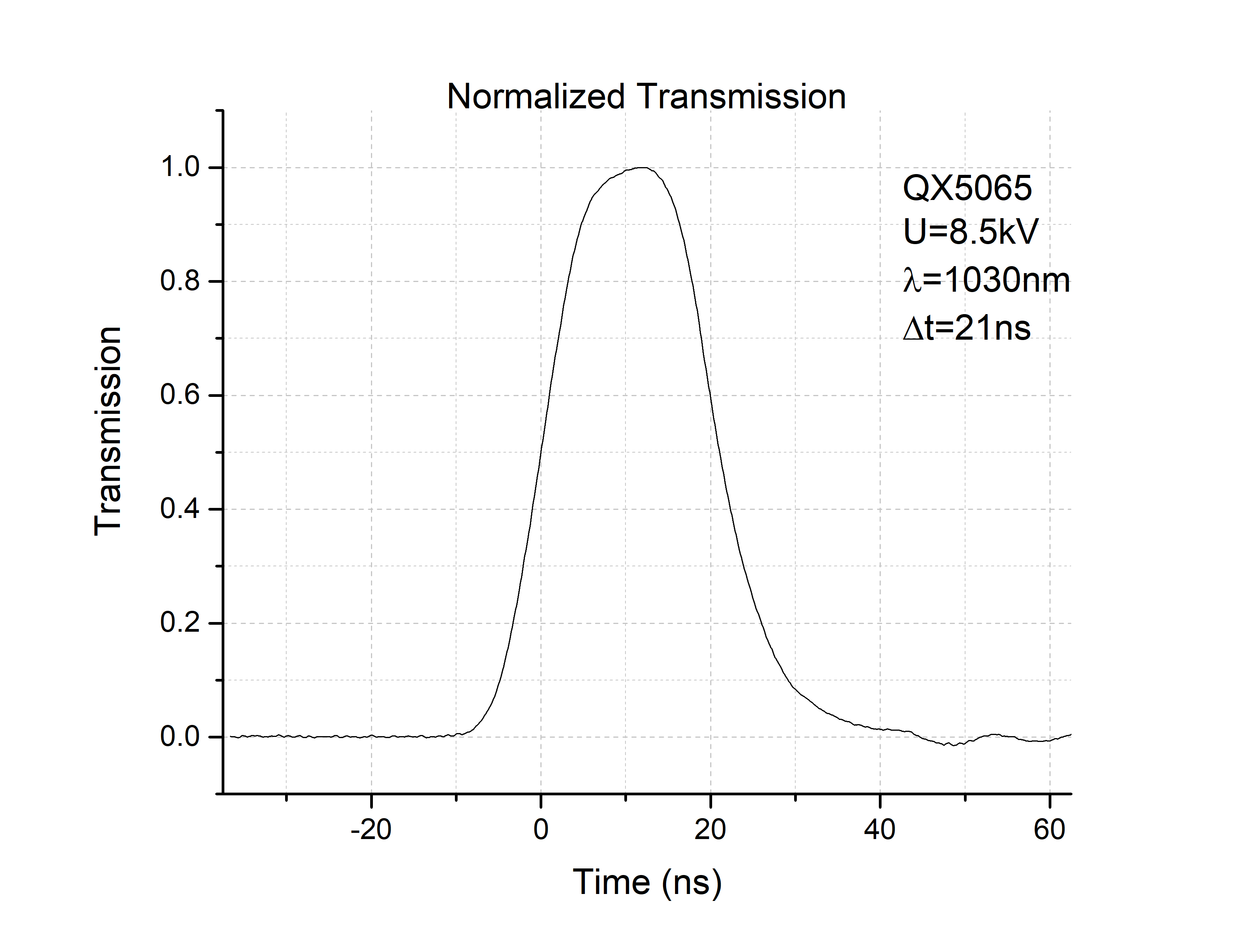

This oscilloscope trace shows the measurement of the optical transmission of a TX5065 Pockels cell in a single-pass setup
measured with a photodiode of risetime 1nsec.
Parameters: 1030nm, 8.5kV, single trigger.

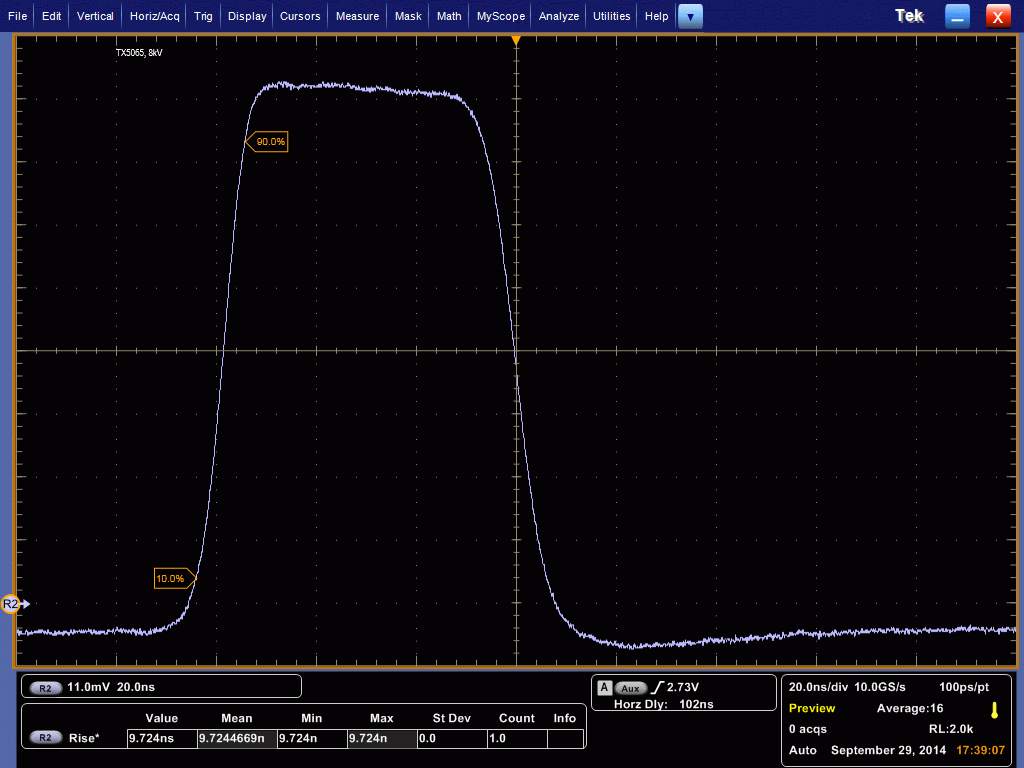

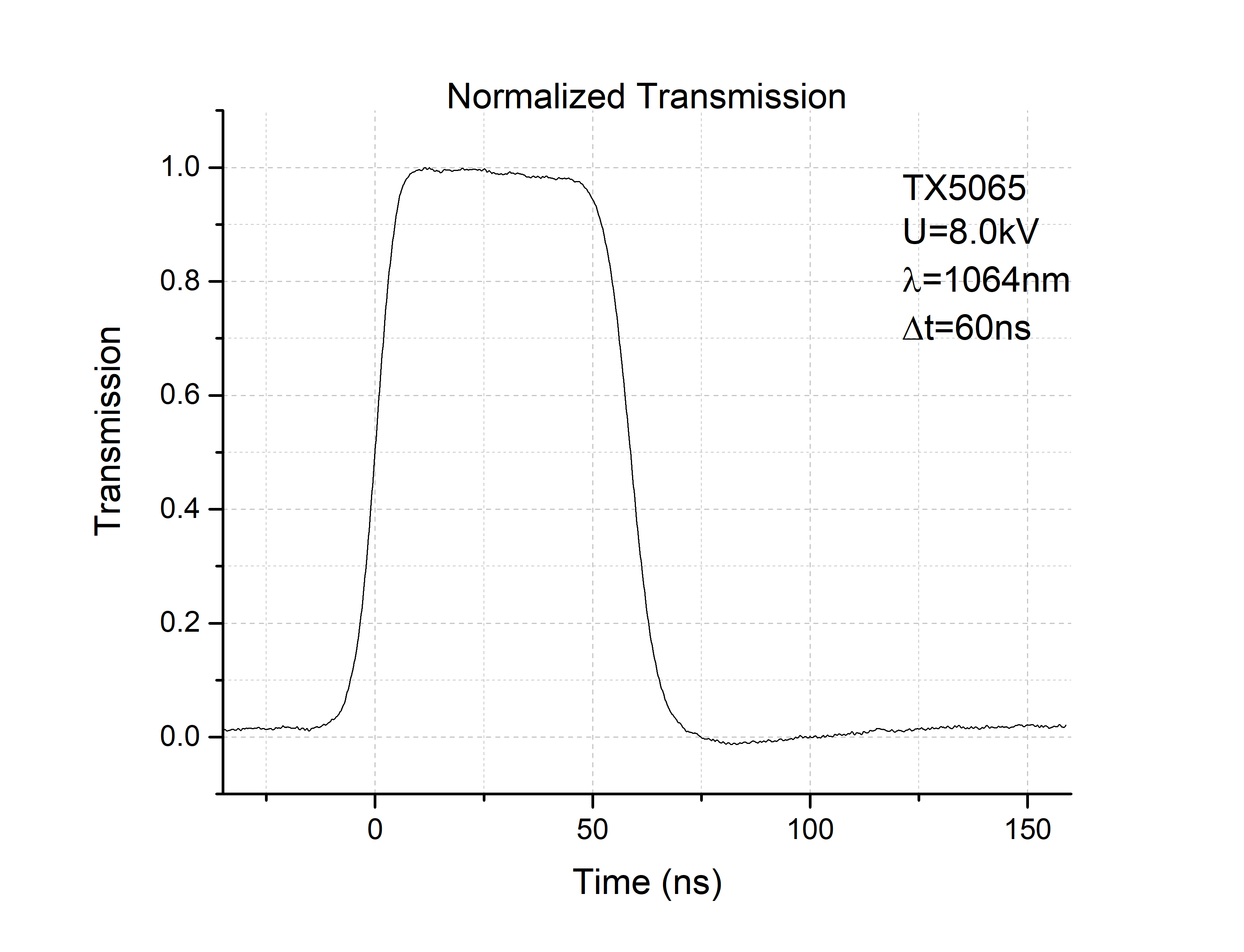

This oscilloscope trace shows the measurement of the optical transmission of a TX5065 Pockels cell in a single-pass setup
measured with a photodiode of risetime 1nsec.
The Pockels Cell Driver is of push-pull type allowing on-times of any length.
Parameters: 1064nm, 8kV, difference between on-trigger and off-trigger: 60nsec
