Lumera / Coherent Legacy Systems

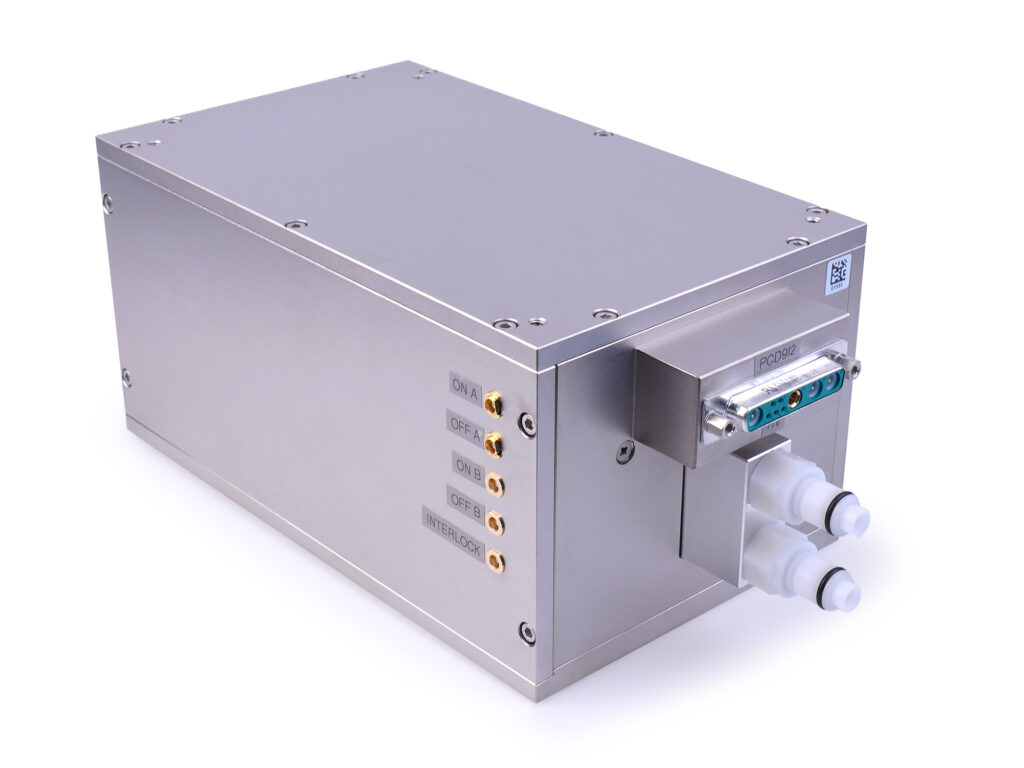

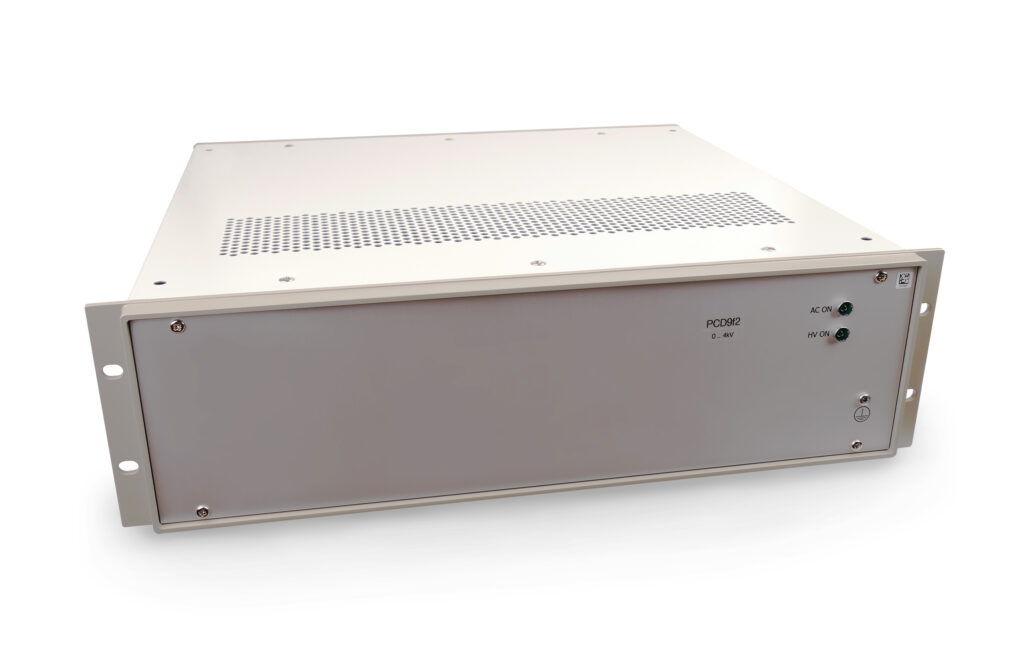

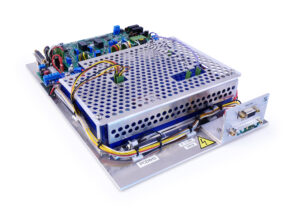

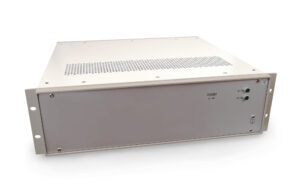

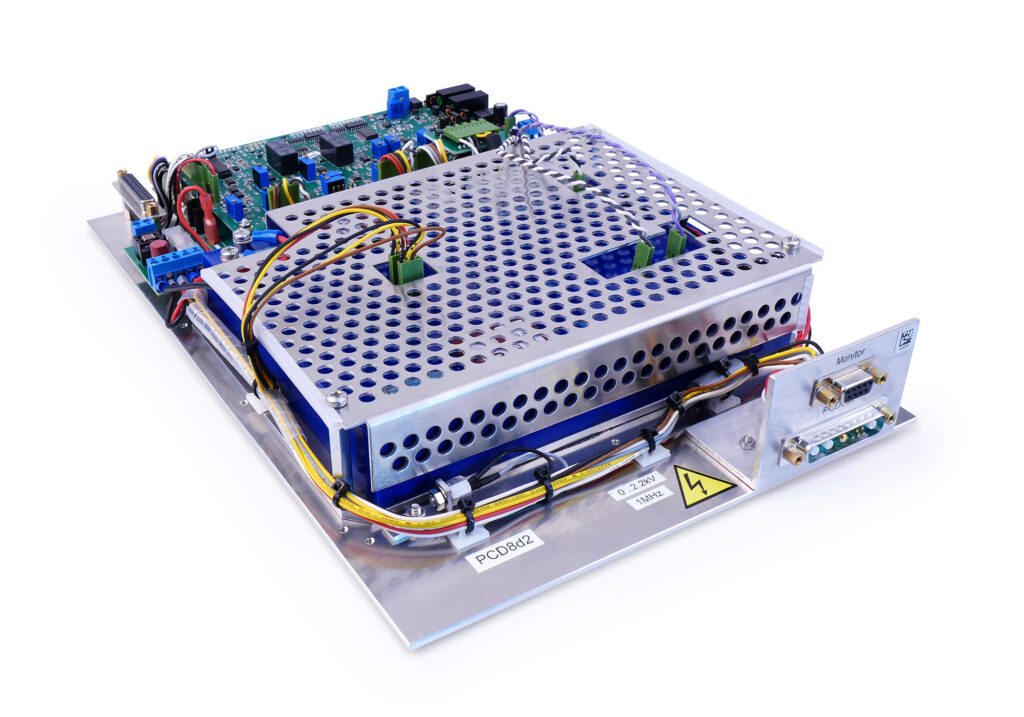

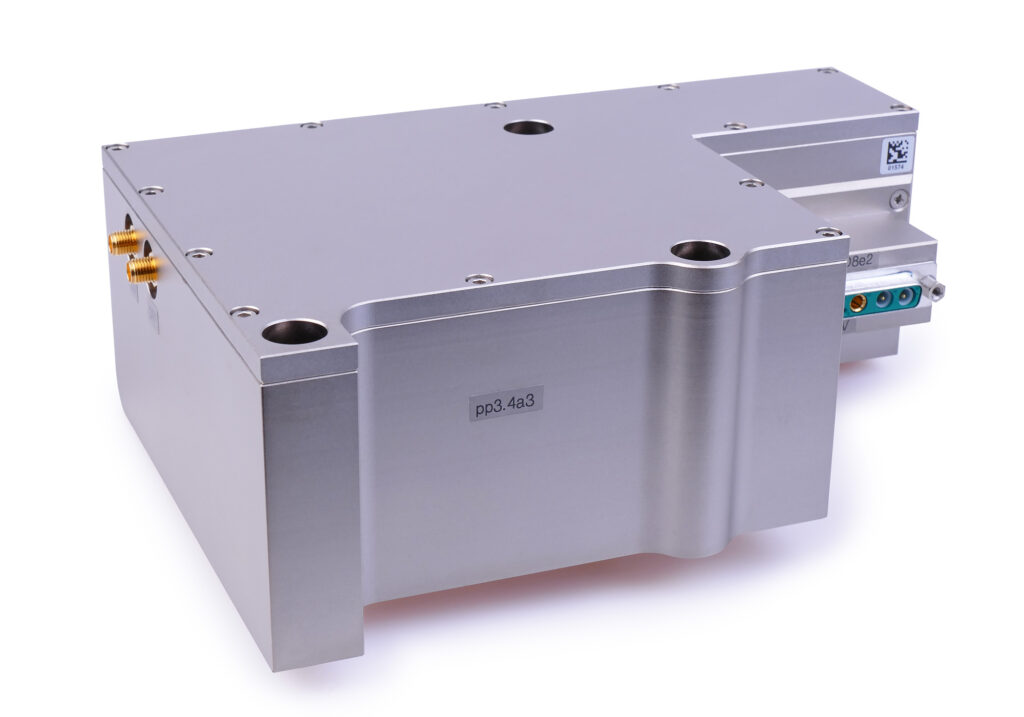

We supplied Pockels cell Drivers as well as Powersupplies to Lumera Laser (now Coherent) for various different types of Lasers such as the Rapid, SuperRapid, HyperRapid, Staccato and Talisker.

Also, the Delaygenerator for controlling the Lasers were supplied by us.

If one of these components is faulty, please contact us for repair / replacement.



Specification of the used Systems

Name Material Reprate Rise/fall Voltage

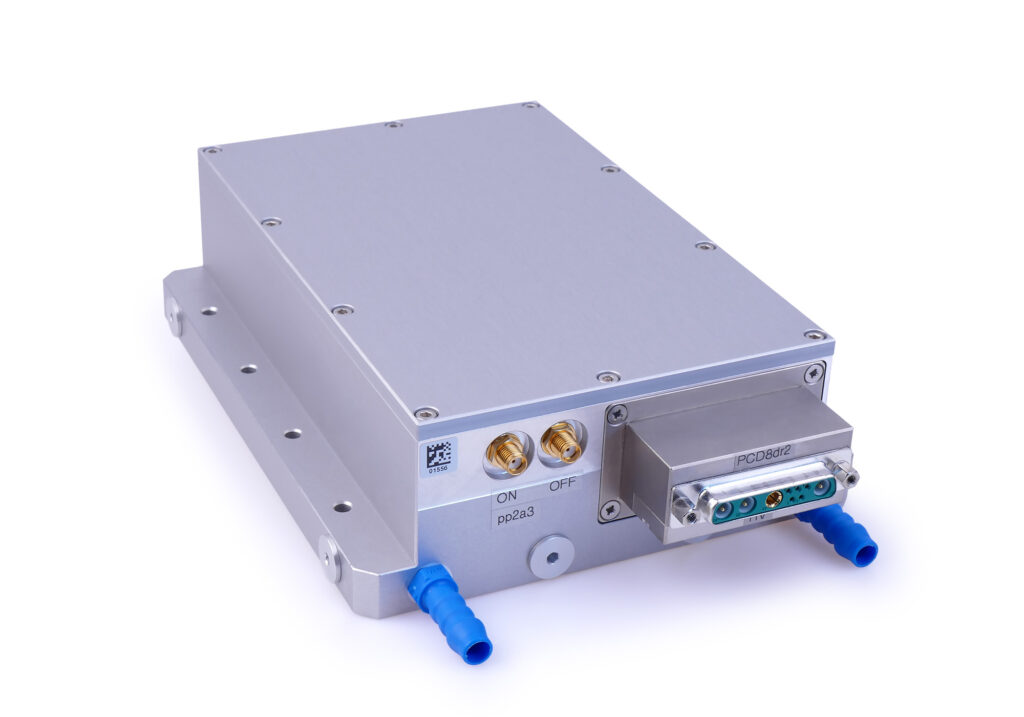

pp2a3 RTP 1.2MHz 8nsec 2kV

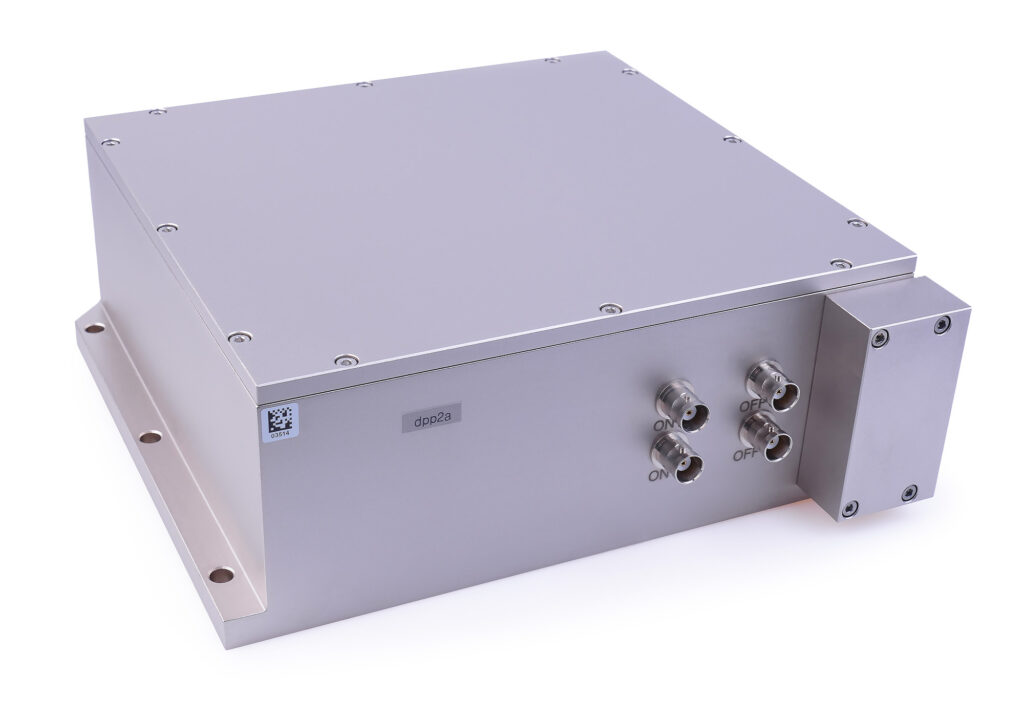

dpp2a RTP 1.2MHz 7nsec 1.5kV
dpp2a3 RTP 2MHz 7nsec 2kV
dpp2b3b RTP 2MHz 3nsec 1.5kV
pp6a2 BBO 300kHz 8nsec 4.5kV
pp7a2 BBO 250kHz 8nsec 5kV
dpp4.5a3 BBO 650kHz 8nsec 3.4kV
dpp6c BBO 200kHz 6nsec 3.4kV
bpp1.7a2 BBO 330kHz 4nsec 2.4kV

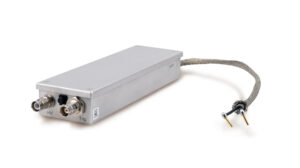

qs2.5c BBO 5kHz 3.6nsec 3.6kV
